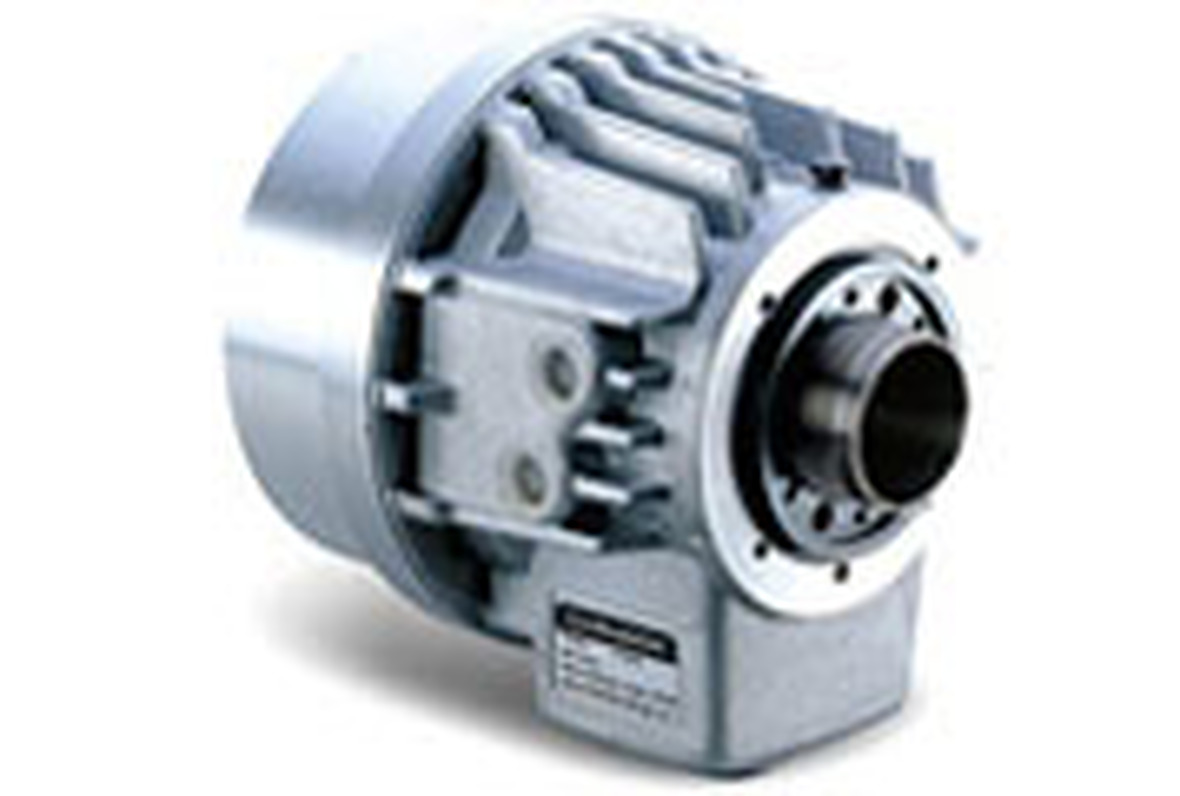

高速中空油壓回轉缸

規格為直徑116×高度43，材質采用淬硬鋼，其增強夾緊型最大至14000N，重復定位精度0.002mm，轉位4×90度，可應用于任何金屬加工機械的主軸及工作臺面，安裝方式為用8個M6螺釘從正面安裝鎖緊，有自動清潔功能和防護罩等。主要技術參數：型式/規格A1B1CC1DEE1FP10361112013625115100M5×0.8P65P124612126.515530130100M6×1P80P15521213619030170130M6×1P85P187517.5154.521535190160M6×1P125P20912116824035215180M6×1P140P25112719131045275230M6×1P166 型式/規格F1GG1HH1JP10366-M10×1.5P48126M42×1.5P8836P124612-M10×1.5P65134M55×2P9846P155212-M10×1.5P70145M60×2P11052P187512-M10×1.5P95162M85×2P15575P209112-M12×1.75P110183M100×2P16591P251112-M16×2P140218M130×2P206117.5 型式/規格J1KK1L1MM1NN1P10366832461544.6385564P12467636461552.9506476P155287.536461559.6557385P187510136461584.68098108P209111036461599.695108120P2511135404615134.6125148160 型式/規格PP1QQ1R1SS1TT1P103673680M5×0.8P5105PT3/81156P124685490M5×0.8P6116PT1/21156P1552964102M6×1P7135PT1/21306P18751214131M6×1P7164PT1/21604P20911384147M6×1P7180PT1/21856P25111785184M6×1P7230PT1/22107 型式/規格UU1V maxV minW maxW1W minX1ZP103617915410-539M44×1.5P24425P124618417210-540M52×1.5P25505P155219621017-547M58×1.5P25565P187523023520-550M84×2P25815P209125326025-555M99×2P25965P251130430224-655M134×2P251306 型式/規格活塞行程mm最高回轉速rpm(minˉ1)GD2活塞直徑mm流量 l/minP10361580000.0121053P12461570000.0191253P15522262000.0531553.9P18752547000.0961804.2P20913038000.162054.5P25113028000.52507

相關產品

全國服務熱線

400-1678-456

立即咨詢

產品介紹

產品說明

研發、制造、銷售、服務相結合的工貿一體型企業

主要技術參數：

型式/規格	A1	B1	C	C1	D	E	E1	F
P1036	11	120	136	25	115	100	M5×0.8P	65
P1246	12	126.5	155	30	130	100	M6×1P	80
P1552	12	136	190	30	170	130	M6×1P	85
P1875	17.5	154.5	215	35	190	160	M6×1P	125
P2091	21	168	240	35	215	180	M6×1P	140
P2511	27	191	310	45	275	230	M6×1P	166

型式/規格	F1	G	G1	H	H1	J
P1036	6-M10×1.5P	48	126	M42×1.5P	88	36
P1246	12-M10×1.5P	65	134	M55×2P	98	46
P1552	12-M10×1.5P	70	145	M60×2P	110	52
P1875	12-M10×1.5P	95	162	M85×2P	155	75
P2091	12-M12×1.75P	110	183	M100×2P	165	91
P2511	12-M16×2P	140	218	M130×2P	206	117.5

型式/規格	J1	K	K1	L1	M	M1	N	N1
P1036	68	32	46	15	44.6	38	55	64
P1246	76	36	46	15	52.9	50	64	76
P1552	87.5	36	46	15	59.6	55	73	85
P1875	101	36	46	15	84.6	80	98	108
P2091	110	36	46	15	99.6	95	108	120
P2511	135	40	46	15	134.6	125	148	160

型式/規格	P	P1	Q	Q1	R1	S	S1	T	T1
P1036	73	6	80	M5×0.8P	5	105	PT3/8	115	6
P1246	85	4	90	M5×0.8P	6	116	PT1/2	115	6
P1552	96	4	102	M6×1P	7	135	PT1/2	130	6
P1875	121	4	131	M6×1P	7	164	PT1/2	160	4
P2091	138	4	147	M6×1P	7	180	PT1/2	185	6
P2511	178	5	184	M6×1P	7	230	PT1/2	210	7

型式/規格	U	U1	V max	V min	W max	W1	W min	X1	Z
P1036	179	154	10	-5	39	M44×1.5P	24	42	5
P1246	184	172	10	-5	40	M52×1.5P	25	50	5
P1552	196	210	17	-5	47	M58×1.5P	25	56	5
P1875	230	235	20	-5	50	M84×2P	25	81	5
P2091	253	260	25	-5	55	M99×2P	25	96	5
P2511	304	302	24	-6	55	M134×2P	25	130	6

型式/規格	活塞行程mm	最高回轉速rpm(minˉ1)	GD2	活塞直徑mm	流量 l/min
P1036	15	8000	0.012	105	3
P1246	15	7000	0.019	125	3
P1552	22	6200	0.053	155	3.9
P1875	25	4700	0.096	180	4.2
P2091	30	3800	0.16	205	4.5
P2511	30	2800	0.5	250	7
